10、城市建筑白模场景制作

本文概述

本文主要介绍如何通过CesiumEarth手工绘制建筑底面，设置建筑高度，按颜色区分类别，形成可查询每一栋建筑信息的三维场景

场景效果

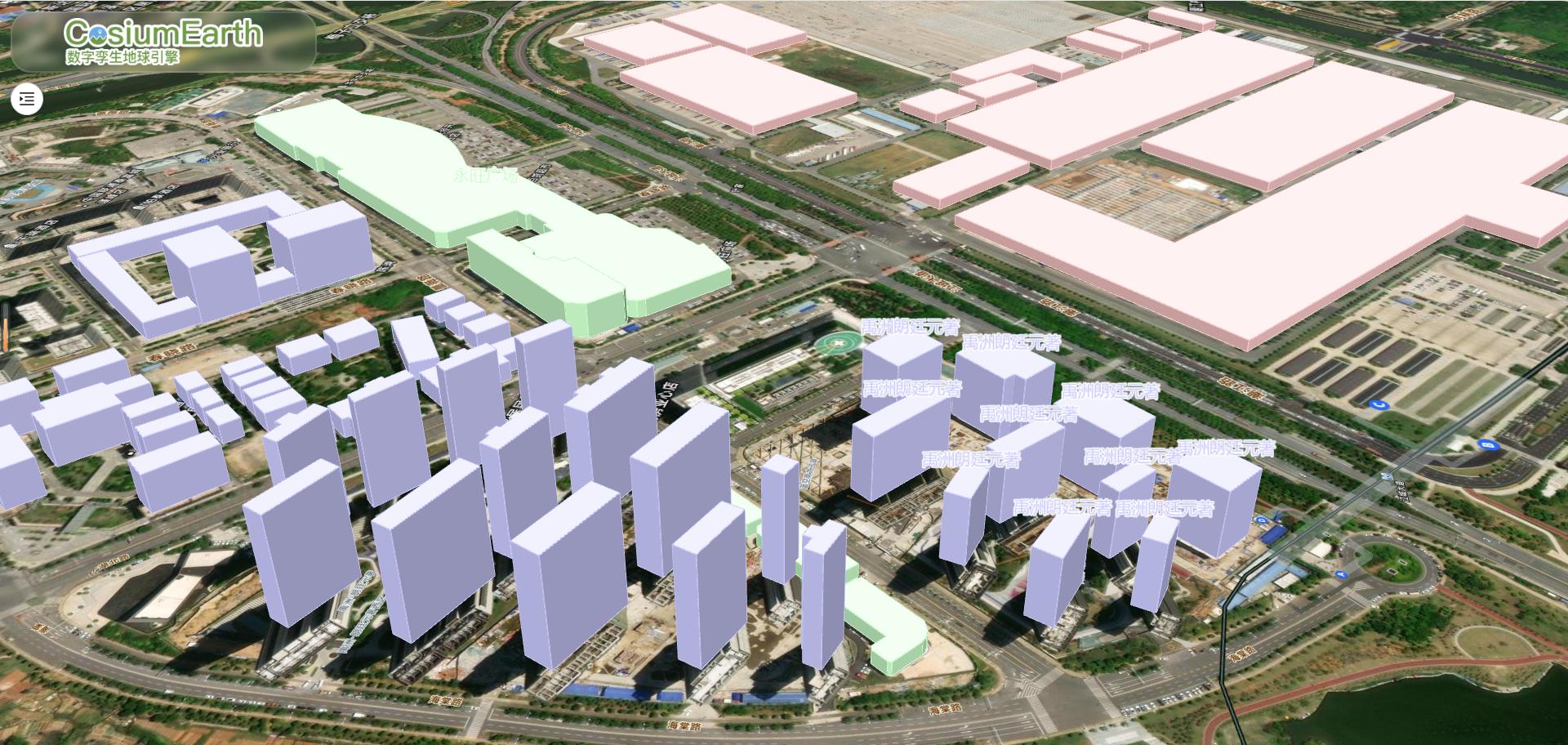

城市建筑白模三维场景效果如下

点击建筑白模可查询信息

一、进入CesiumEarth并默认加载基础图层

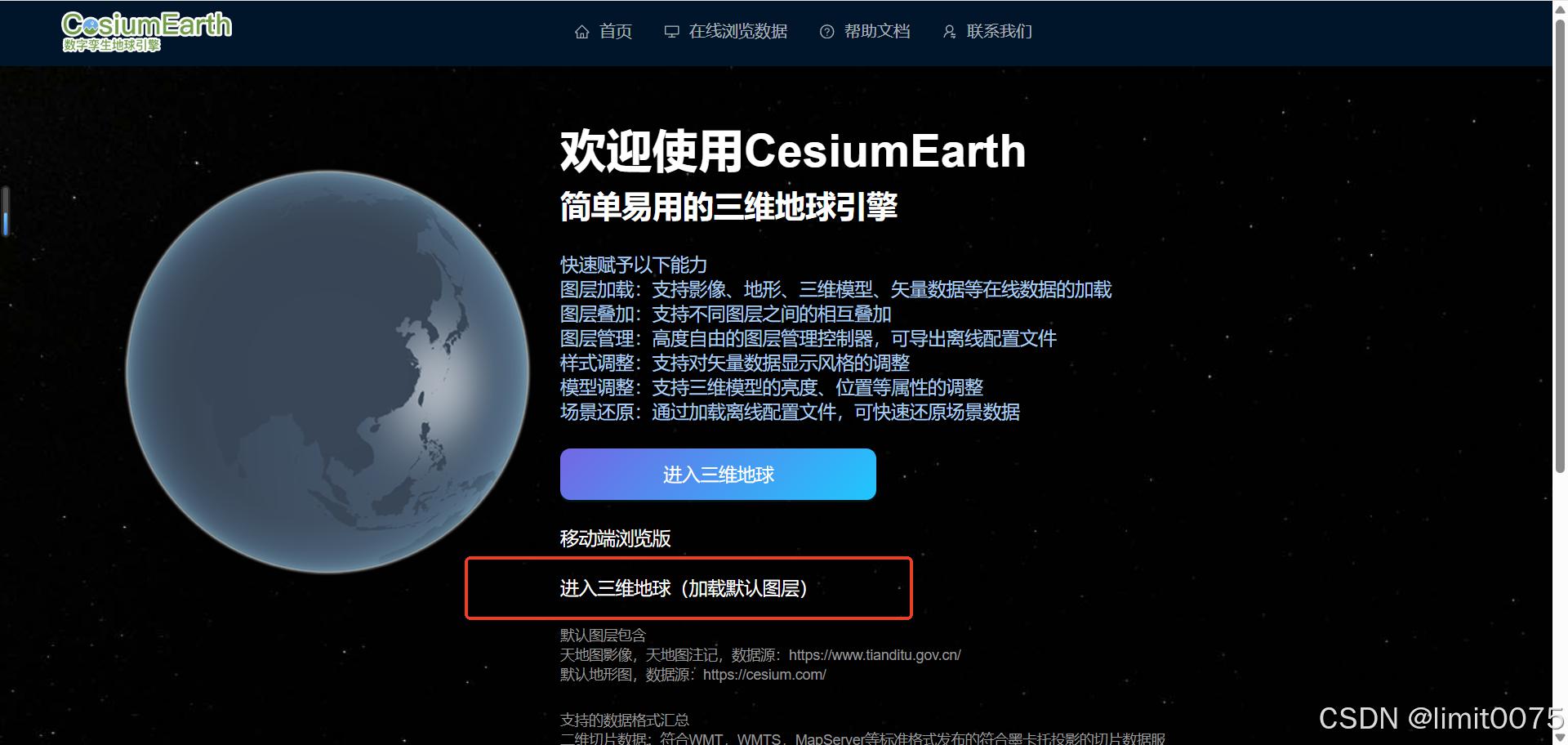

从首页点击进入三维地球（加载默认图层）

默认图层包含天地图影像、天地图注记、CesiumIon地形三个图层

二、绘制建筑底面数据

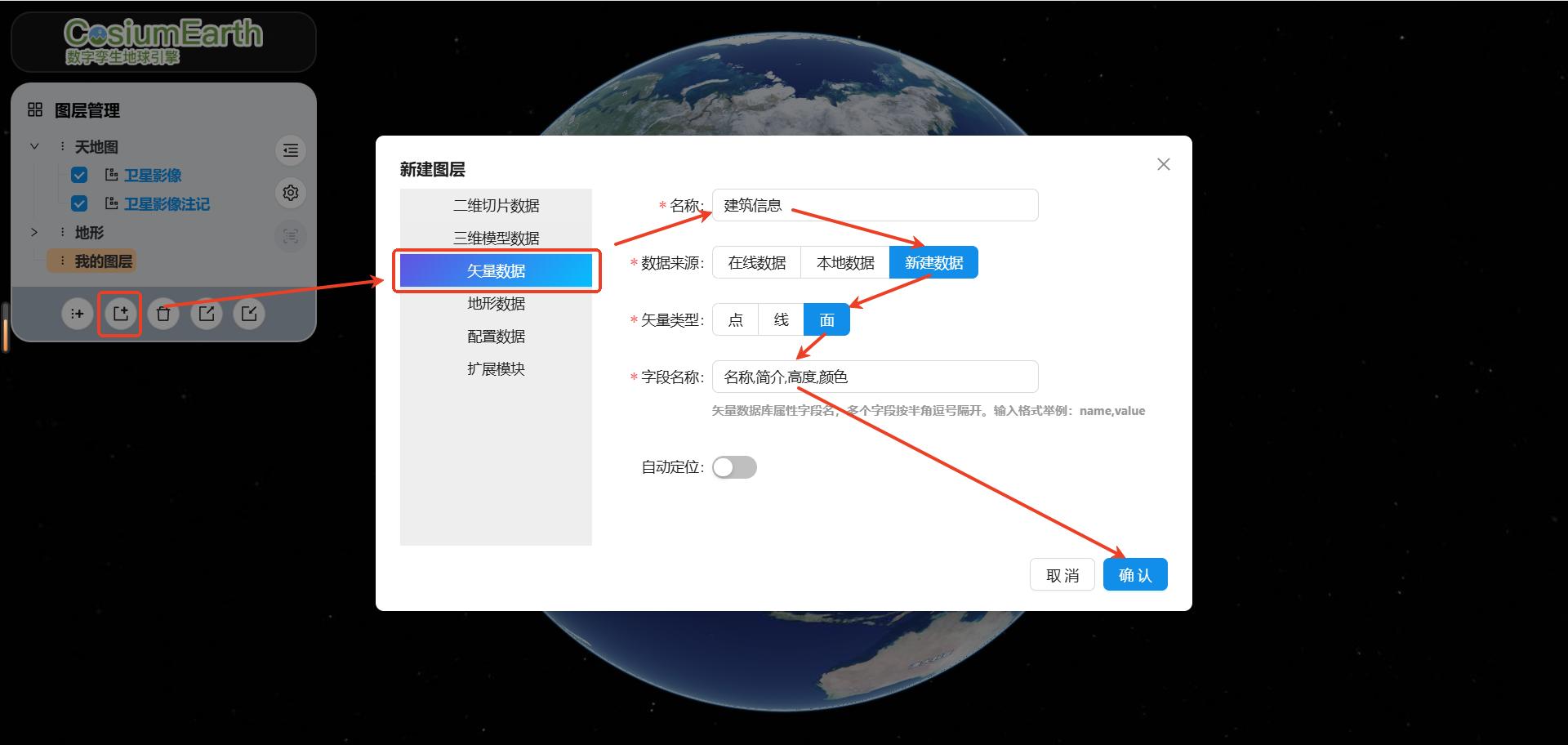

新建矢量图层

输入图层名称，选择新建数据，设置矢量类型为面，输入字段名称（名称,简介,高度,颜色）

添加建筑底面

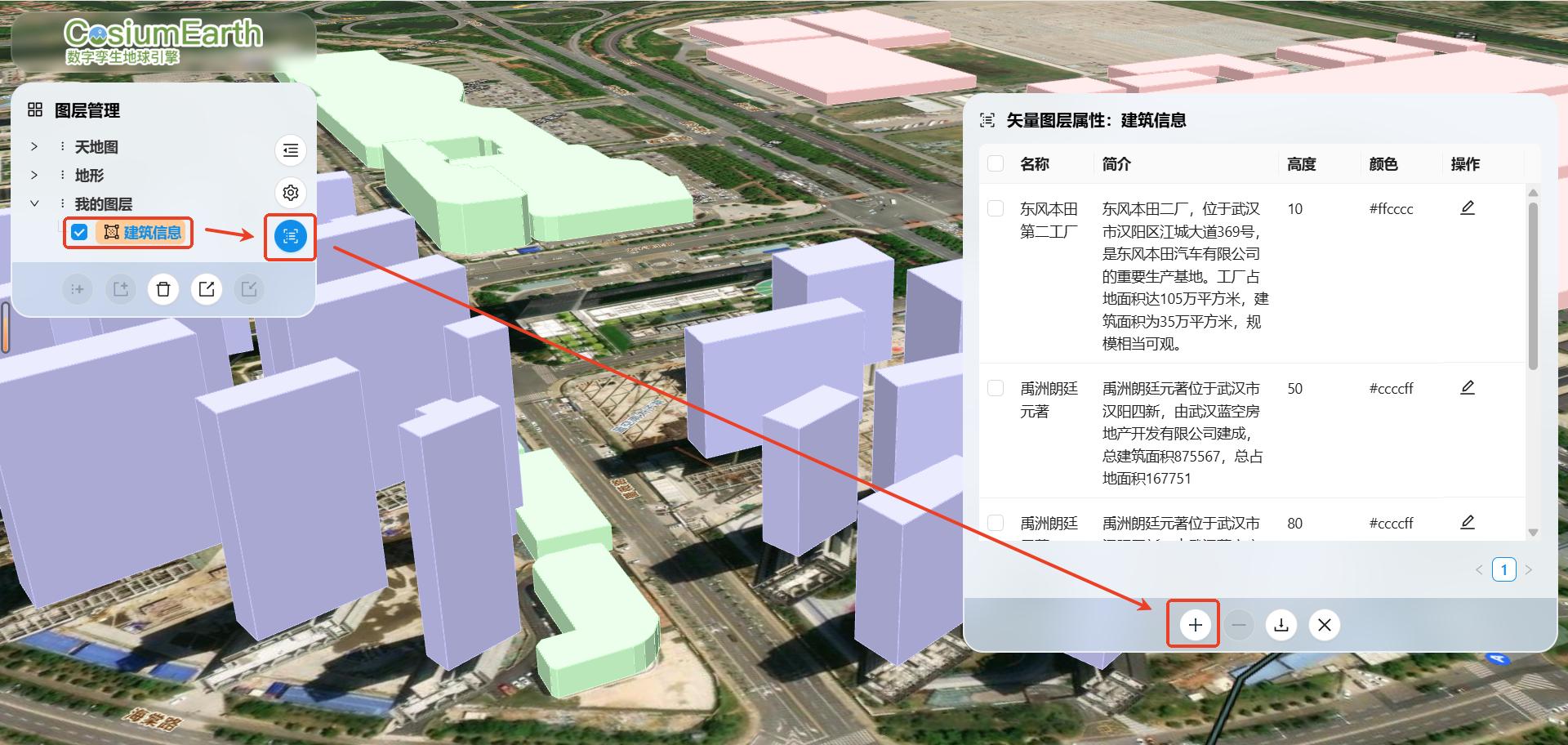

选中建筑信息图层，点击矢量图层属性，点击添加要素

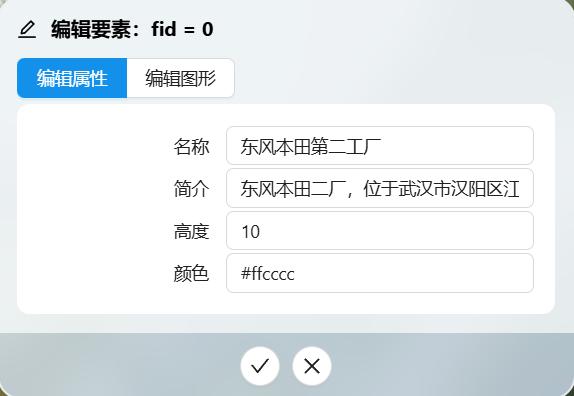

在编辑属性选项卡中输入要素对应的属性内容，并在高度和颜色字段中设定白模的高度和颜色值

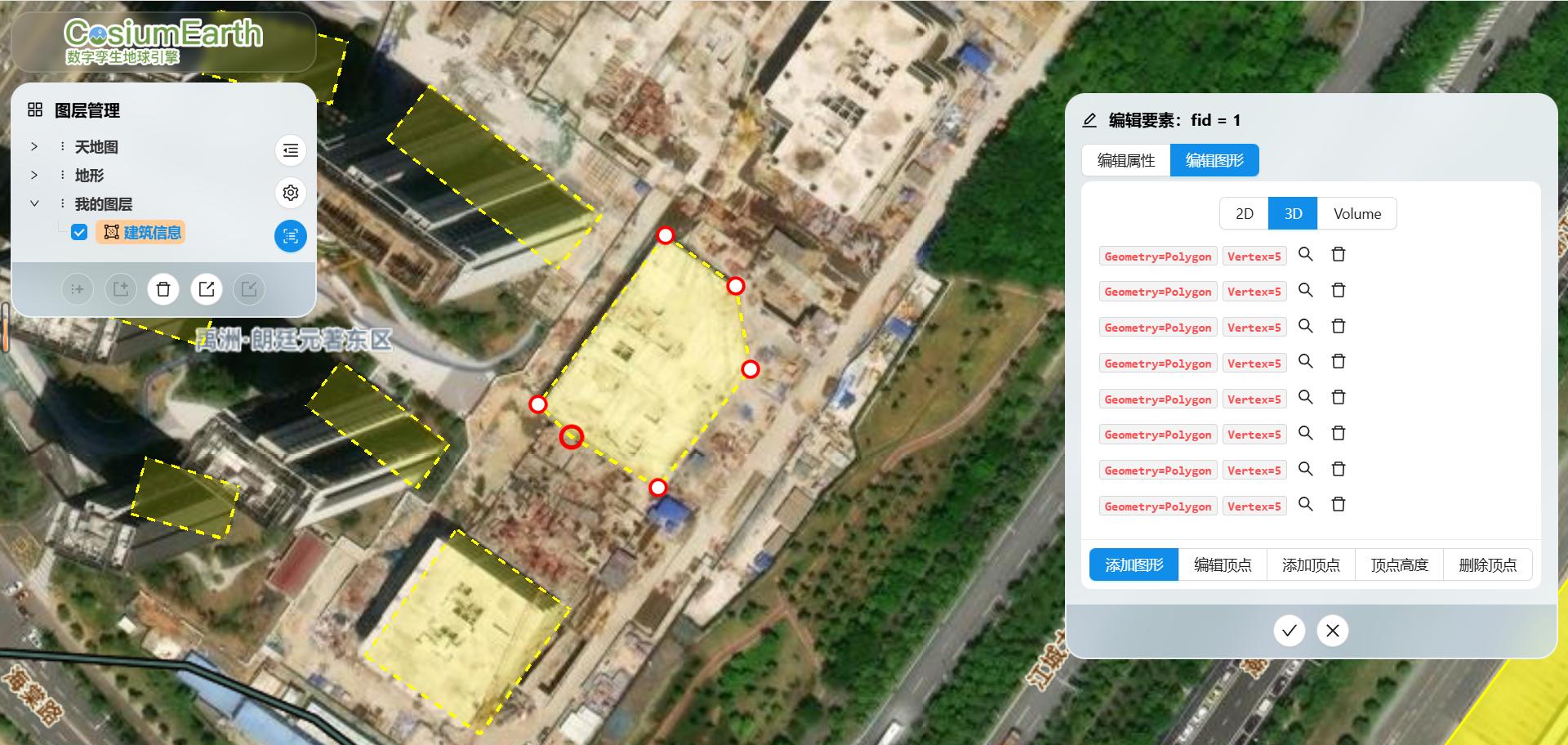

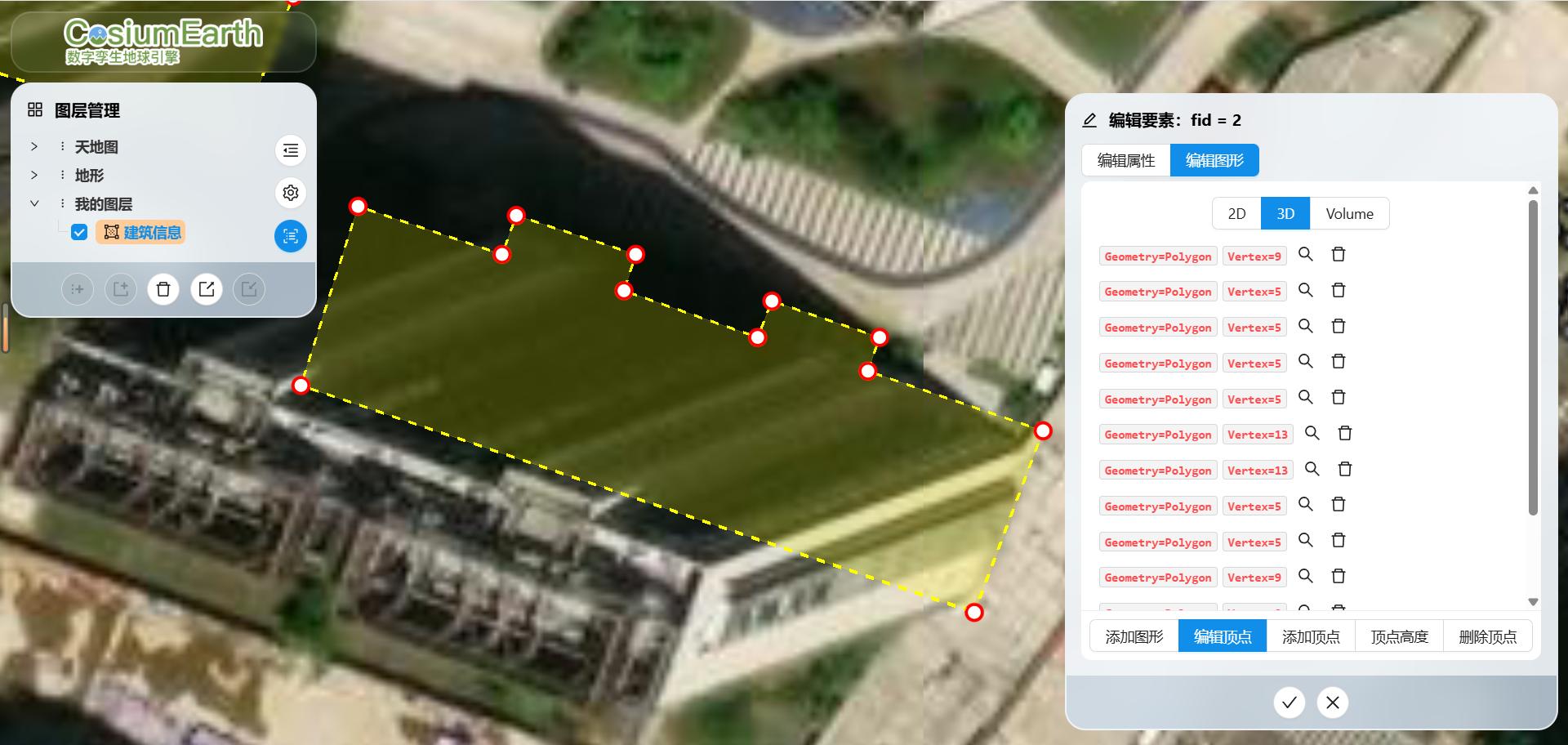

在编辑图形选项卡中绘制建筑底面，右键结束编辑，点击确认后添加完毕

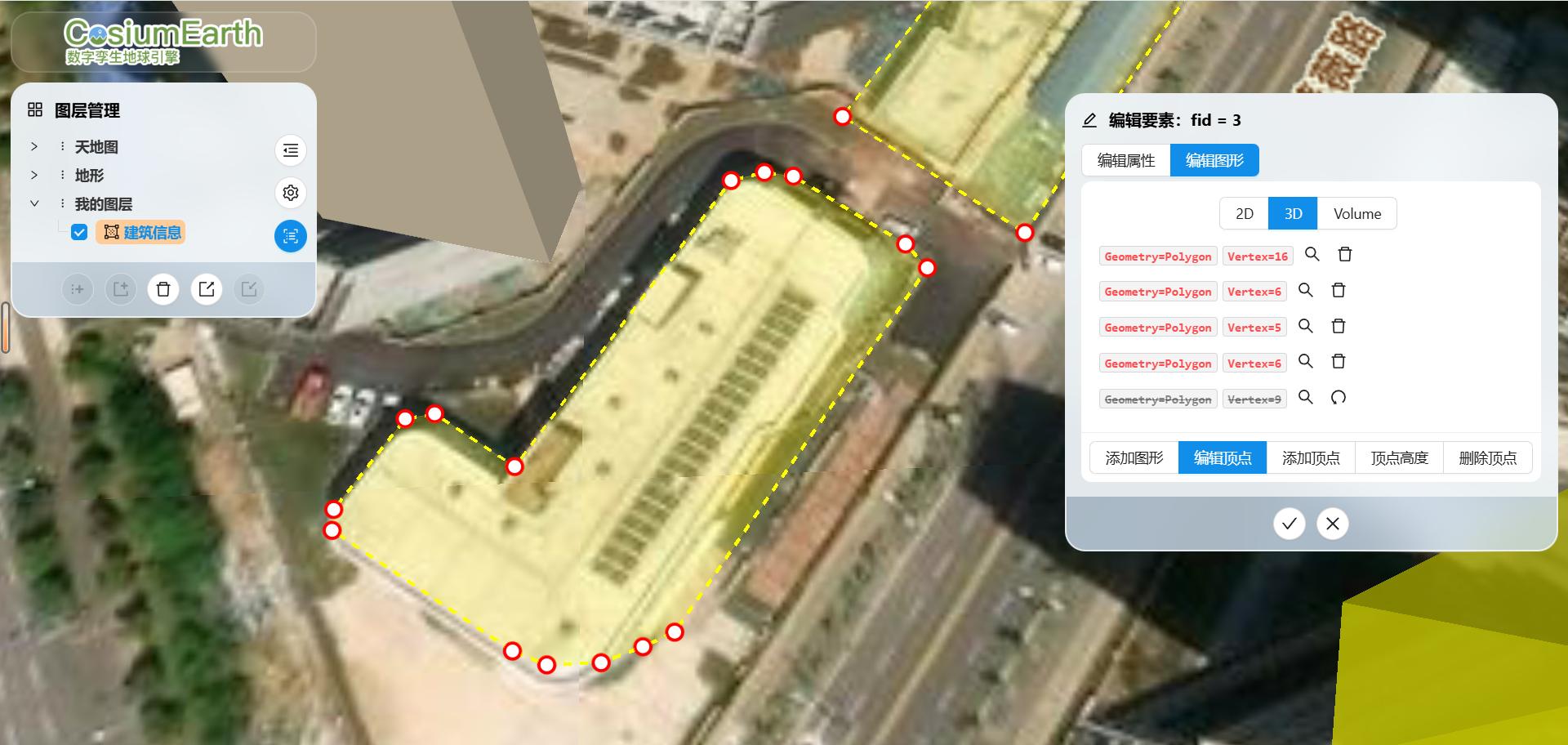

若想白模更加精细，只需在绘制底面时勾勒出更多的线条即可

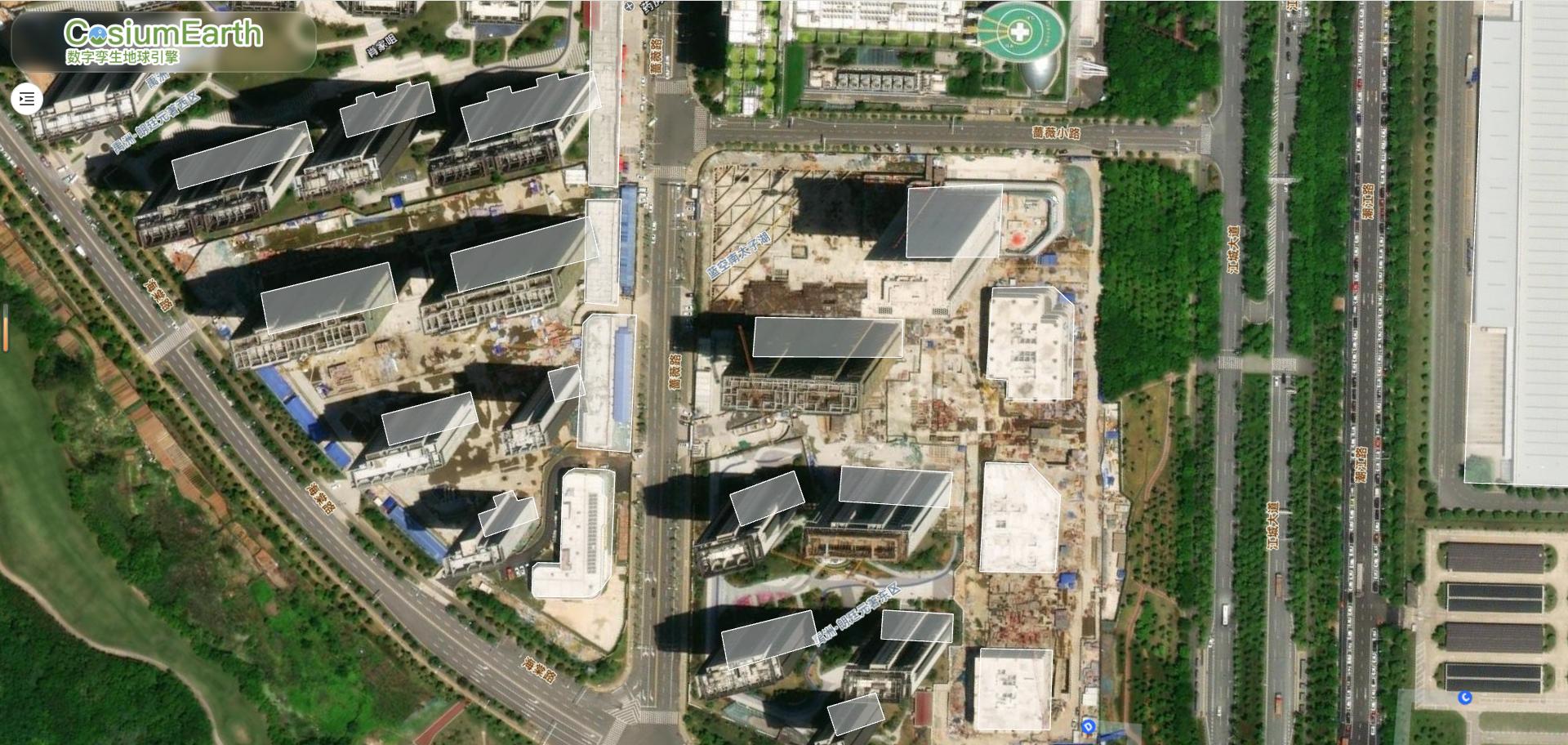

若以正射影像作为地图参考，绘制出的白模精度更高

三、调整矢量面参数

默认参数下，面仅仅以多边形面的形式渲染，此时需要对渲染模式进行更改

使二维面变成三维立体模型

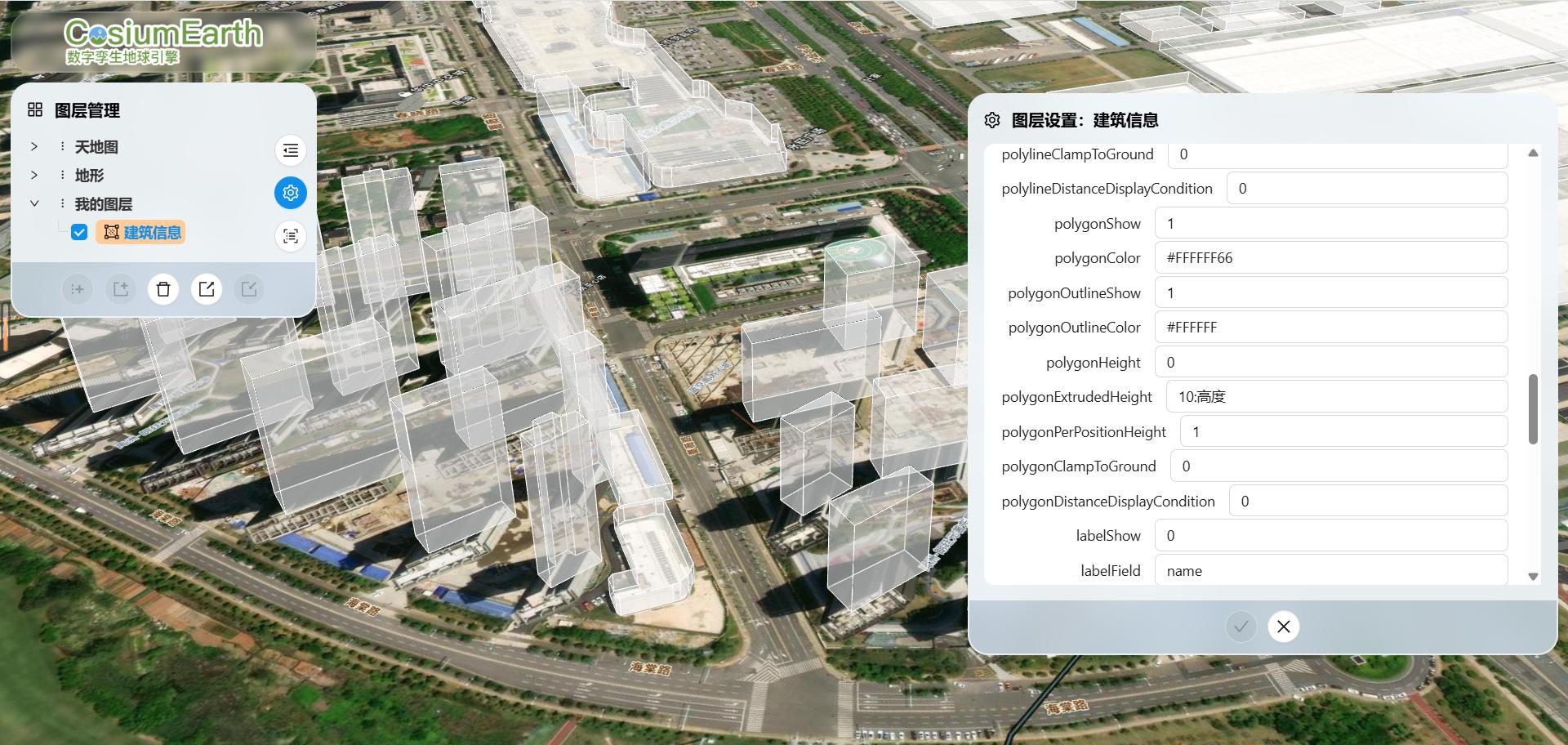

选中建筑信息图层，点击设置按钮，调出图层设置界面

按如下参数进行调整，给模型赋予高度，变成三维立体模型

二维面变成三维立体模型

polygonOutlineShow = 1
polygonExtrudedHeight = 10:高度
polygonPerPositionHeight = 1

给模型赋予颜色

此时模型默认颜色为白色透明，此处将模型的颜色从字段中读取，字段中可按建筑类型赋予不同的颜色

本例中颜色值已经在矢量图层数据中事先进行的预设，具体如下

预设的颜色值

工业区=#ffcccc
住宅区=#ccccff
商业区=#ccffcc

在图层设置中，按如下参数进行调整

赋予颜色

polygonColor = #FFFFFF:颜色
polygonOutlineColor = #FFFFFF:颜色

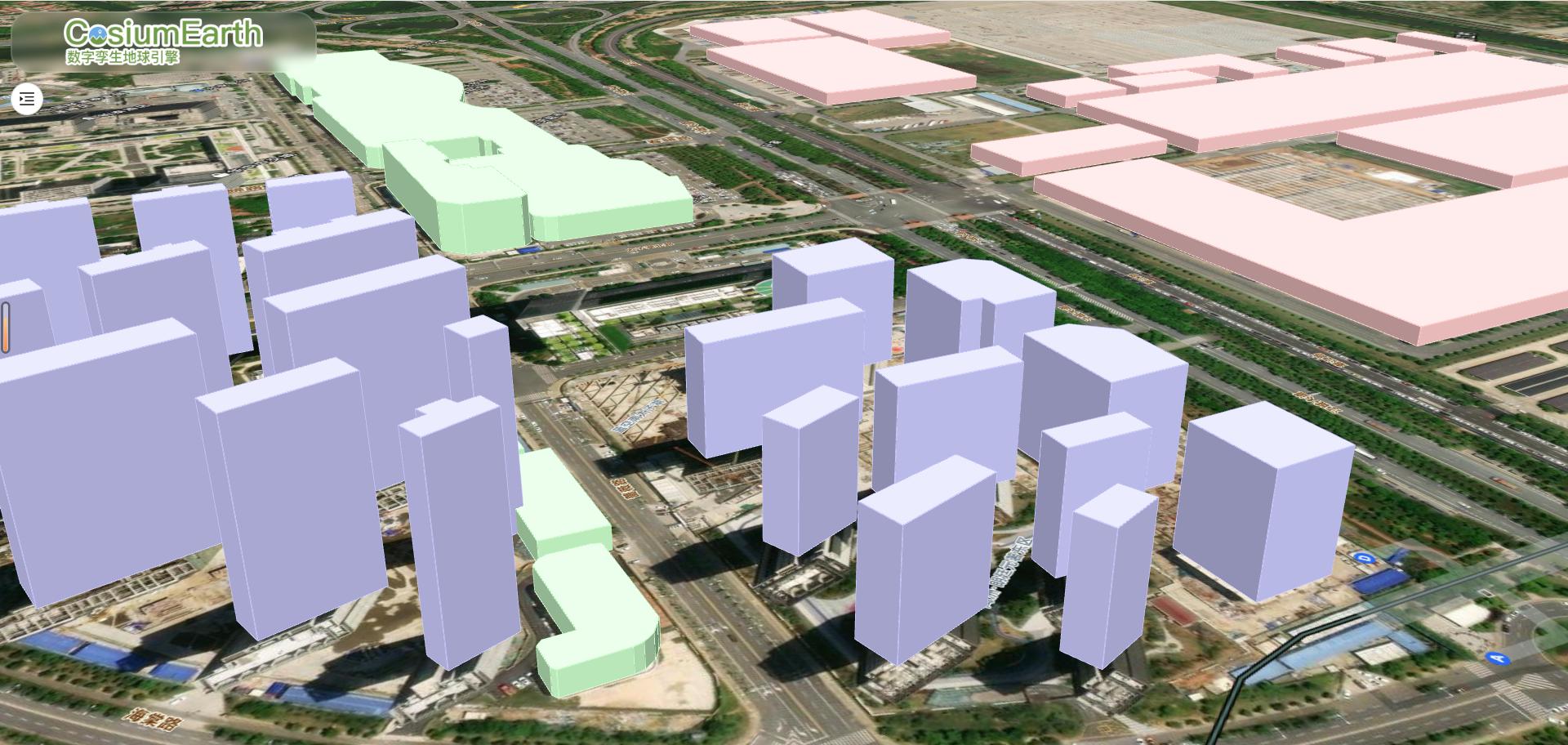

此时已完成城市建筑白模的场景搭建

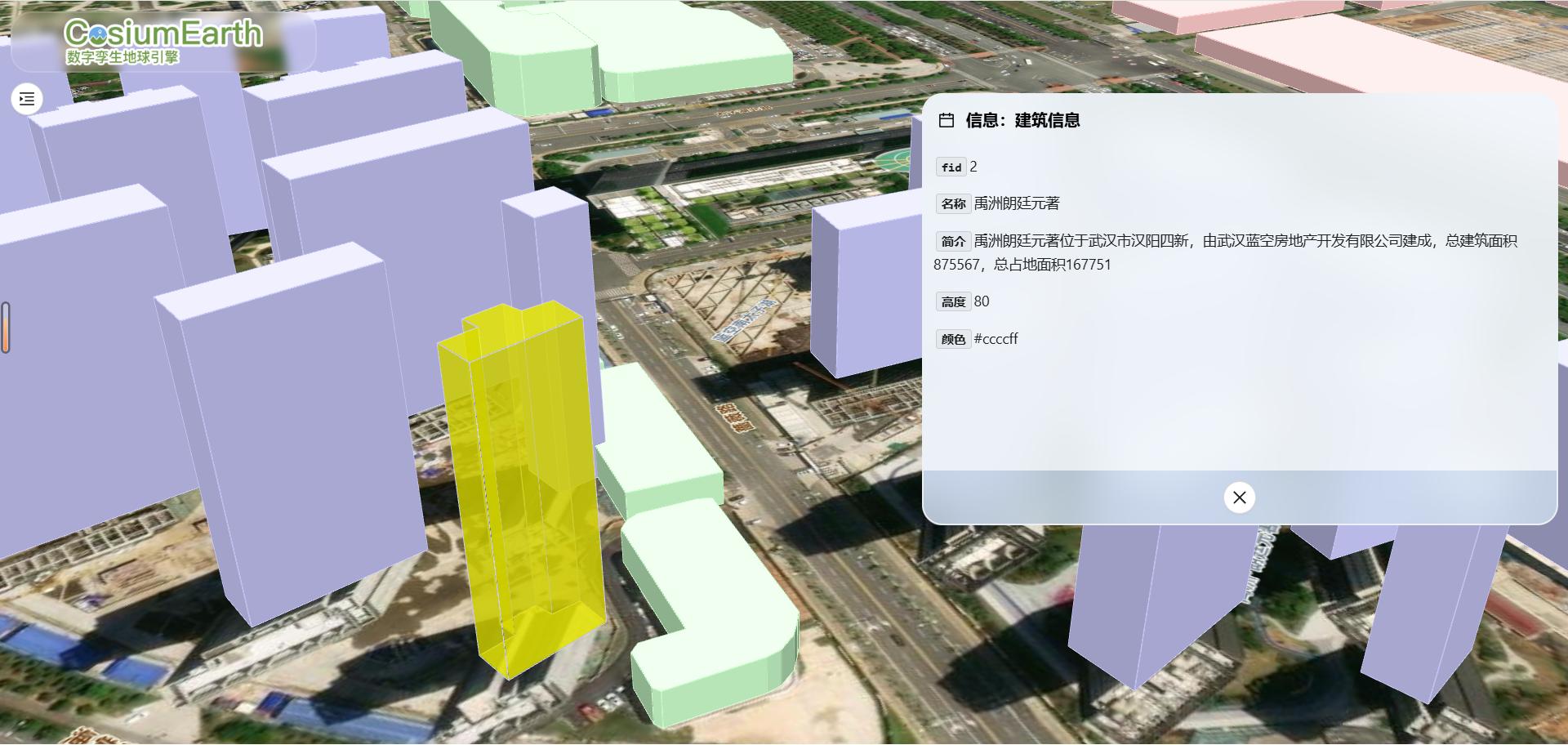

点击某一栋白模可查看建筑信息

三、显示名称

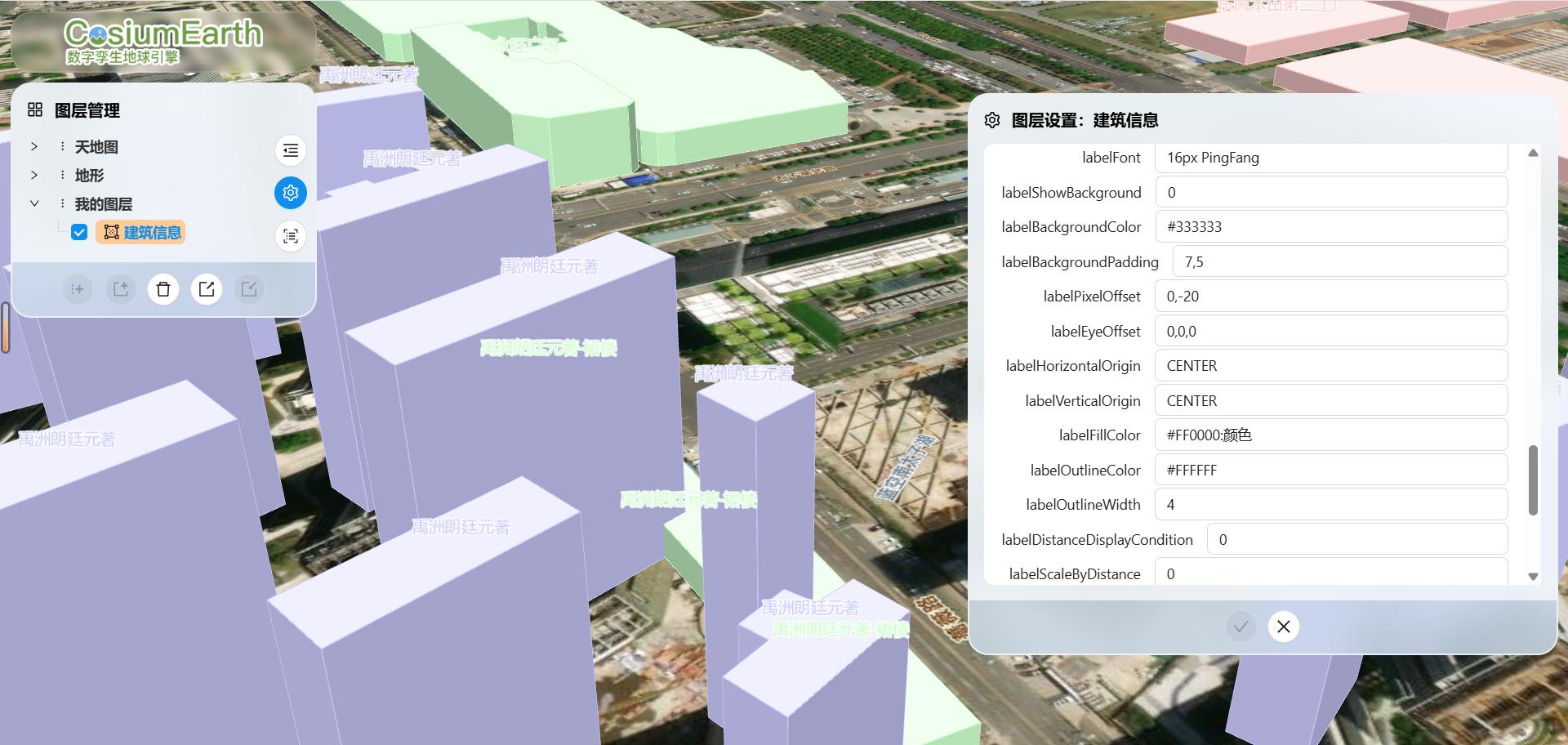

每一栋建筑白模可选择是否显示名称，只需开启label功能，参数如下

显示名称

labelShow = 1
labelField = 名称
labelFillColor = #FF0000:颜色

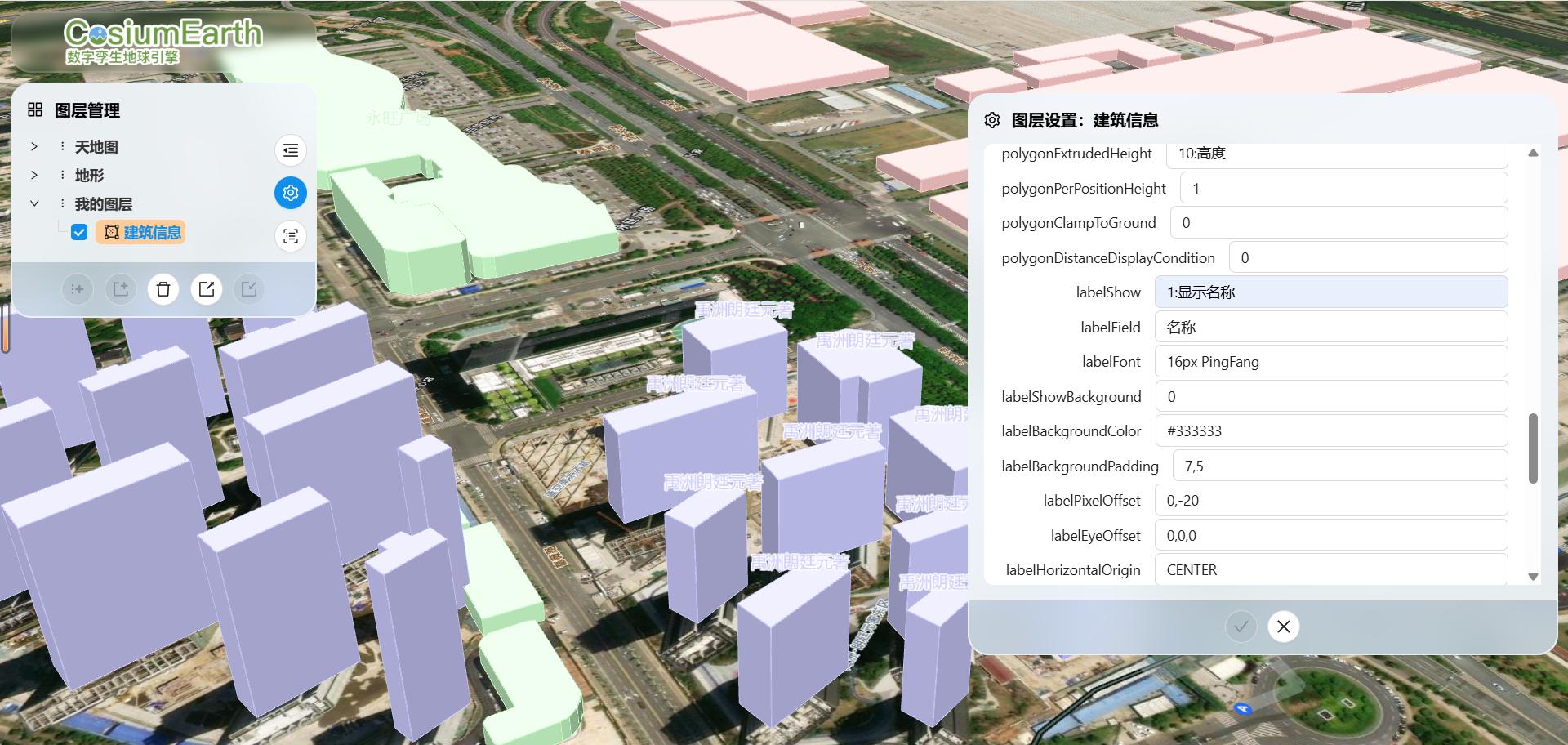

全部体块显示名称信息，会显得有些杂乱，此时可以在图层中增加字段，动态控制labelShow参数

显示名称

labelShow = 1:显示名称

附上本场景的cedb数据

直接复制cedb数据，可浏览查看，同时也支持移动端查看

CesiumEarth官网地址: http://www.cesiumearth.com
PC端地址如下：http://www.cesiumearth.com/#/map
移动端地址如下: http://m.cesiumearth.com
